DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable

Product Categories
Dongguan HOOHA Electrical Machinery Company Limited
Contact Now

DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable

Brand Name : HOOHA

Model Number : HH-E

Certification : ISO/CE

Place of Origin : Dongguan, China

MOQ : 1 set

Price : US $10,999.00-＄14,999.00/1set

Payment Terms : L/C, T/T

Supply Ability : 100sets/1 month

Delivery Time : 40 Working Days

Packaging Details : plastic package

Function : Extruding

Bearing : Japan-NSK

Warranty : 1 Year

Control Box : International Standard

Certificates : CE/ISO

Color : Customized Color

Screw Design : Single-screw

Screw Material: : 38crmoala with Nitrided Surface

Electric Element: : Siemens and Omron

Contact Now

DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
Product Description

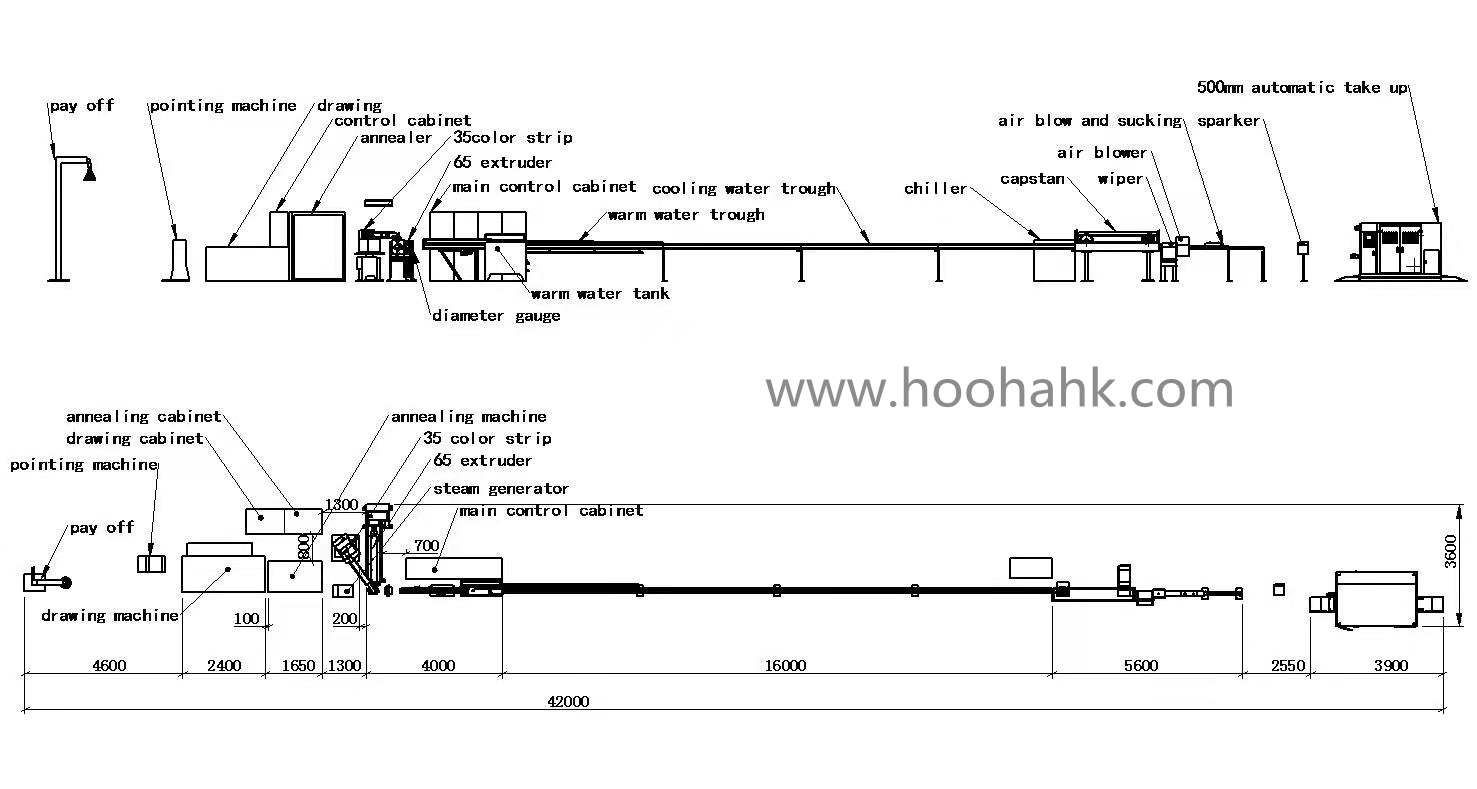

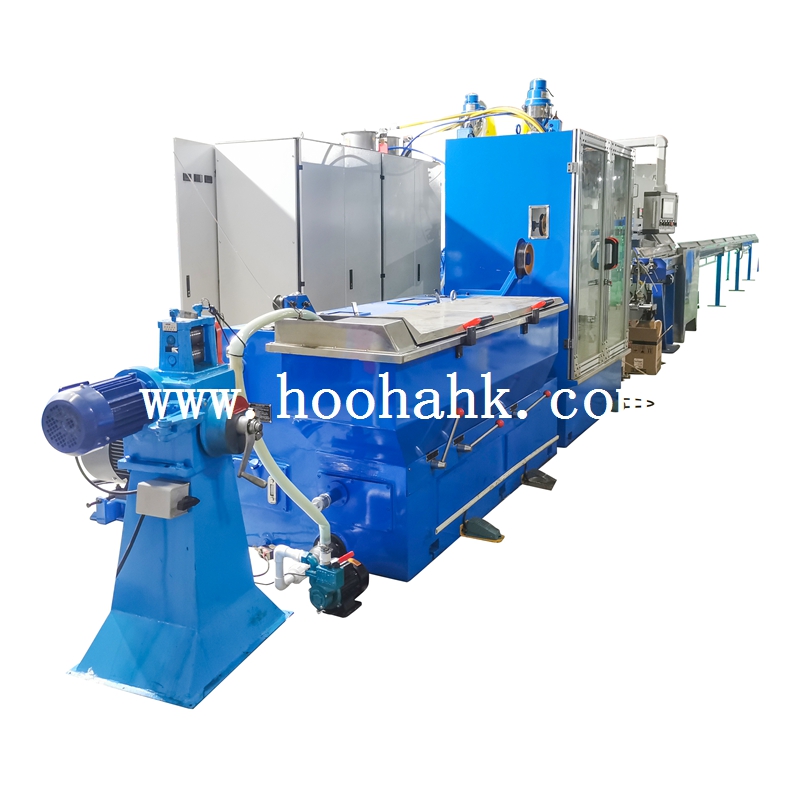

DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable

Application:

It’s used for the insulation of wire &cable with PVC,LDPE,NYLON,TPU. Also it can be equipment with triple co-extrusion cross-head and double layer.
Diameter of screw rod
65mm
Ratio of length and diameter
L/D＝24/1
Rotation speed of screw rod
50～140rpm
Max. working pressure
400bar
Heating power
10KW
Main motor
DC 30kW
Total weight:
about 13000KG
Dimension:
(L×W×H)36000×3000×340mm
Capacity of hopper drier
50kg: Heating 4Kw
Capacity of color base mixe
5L
Suitable raw material :
A.Low oxygen or oxygen–free round copper wire (cu). The maximum inlet diameter is 3.0mm.
B.Insulation material : PE/PVC/PP/HFFR

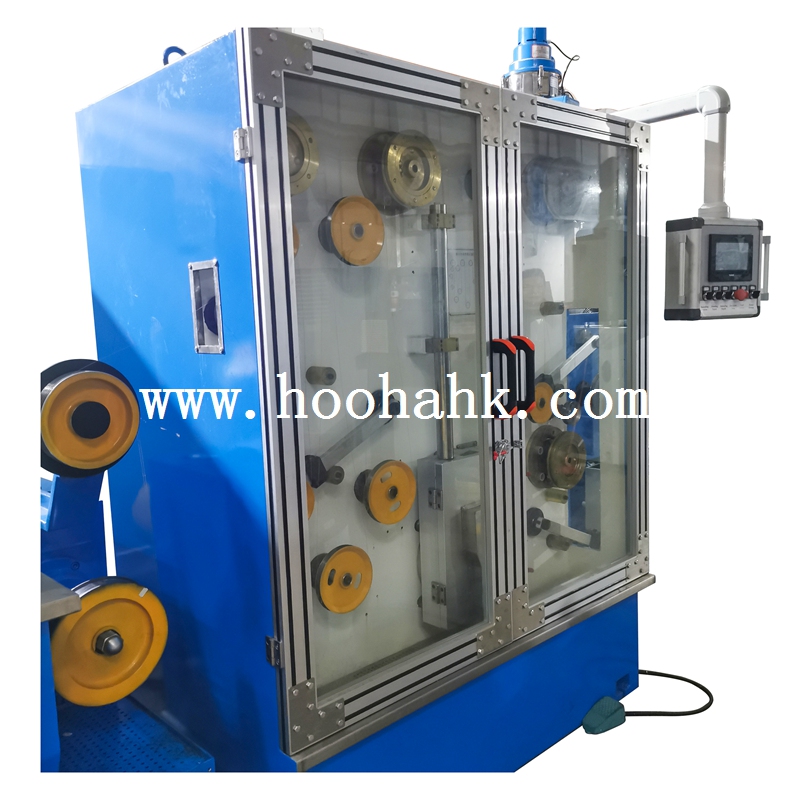

DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
Max Inlet Dia.
Ф2.60mm
Outlet Dia.
Ф0.40～0.mm
Max.machanical Speed
1800 m/min
Max quantity of Dies
17
Out Dia of Dies
25mm
Mechanical Elongation
Last die18.6%；Others 25%；
Max Drawing wheel Dia.
Ф250mm
Capstan Wheel Dia.
Ф250mm
Main motor Power
DC 55 kw
Size
2400×1070×140mm
Weight
3200kg
Specifications
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
Max mechanical speed
1800m/min
Suitable dimension of spool
F500×F250×F56×250㎜
Max capacity of spool
70kg
Dynamic balance level of winding spool
International standard G6.3
Winding motor power
DC 11kW
Traverse motor power
AC 0.2kW Speed reduction motor
Spool-conveying motor power
AC1.5kW
Motor of power of traverse device
AC 0.4kW Speed reduction motor
Protection cover motor power
AC 0.4kW Speed reduction motor
Wire catching rate
≥95％

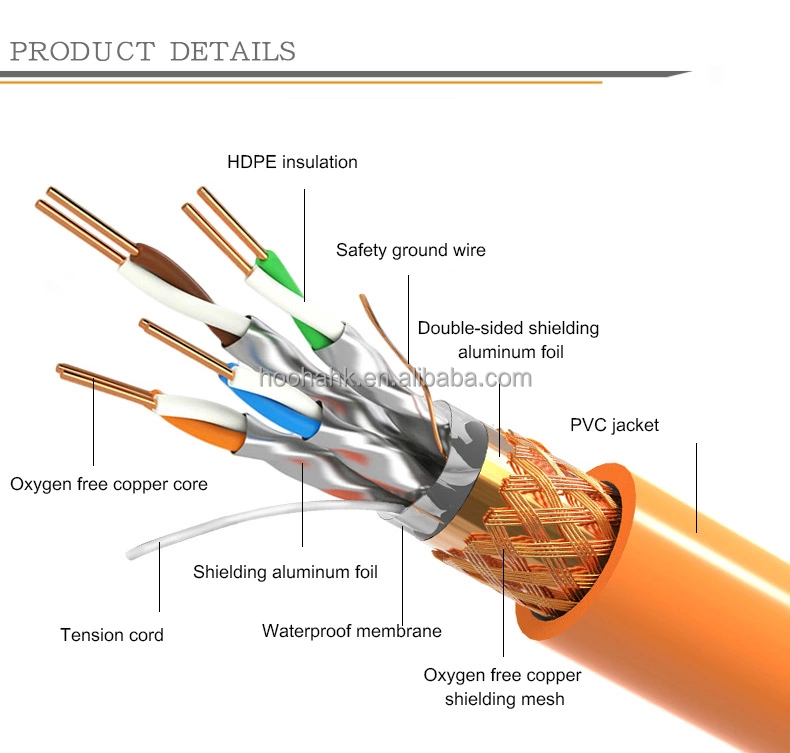

The Wire Samples
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
DC 30kW Tandem Line Wire Extrusion Machine For Network Lan Cable
Configuration of hard ware
1)DC speed regulator is digital type product of PK brand.
2)Programmable controller is product of Japanese Mitsubishi company.
3)Temperature controller is product of Japanese RKC company.
4)Low-voltage electric appliances (air switch, contactor) are products of Japanese Fujitsu company.
5)Industrial control machine is Taiwan product.
