High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine

Product Categories
Dongguan HOOHA Electrical Machinery Company Limited
Contact Now

High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine

Brand Name : HOOHA

Model Number : HH-50

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000unit/year

Delivery Time : 60

Packaging Details : Film packing

Product name : 50 cable extrusion machine

Extrusion capacity : Max 15 kg/h

Motor : 2.2 kw

Type : Dual-wheel (φ410*100MM)

Traction power : 2.2 kw

Traction speed : Max 600 m/min

Measurement : 1600*1200*1250 mm

Insulation material : PVC, PE 100% plasticization

Contact Now

1,Equipment application:

Suitable for PVC, polybutadience PVC, PP, PE etc plastic wire single/double, single/double color high speed extrusion, mainly used for double extrusion cloth wires, power wire, mine cable extrusion, nuclear power cable, automotive wiring harness of extrusion, etc.

2,Technical parameters:

Material PVC,NBR-PVC,PP,PE

wire conductor diameter

 ø 0.5-4.0mm

Production line speed

 (according to the wire diameter)
flexible wire finished diameter ø 1.5-8mm
Hard-wired finished diameter ø 0.5-6mm
Wire coaxiality above-93%
Extrusion output 150kg/h( the machine head is open, PVC material )
Color sky blue(can adjust according to customer’s demand)
Power 45KW
Center height of production line 1000mm

Product Description
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Youtube:
https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
50+53 Wire Extrusion Machine Configuration
Machine name
Quality (set)
pay-off rack
1
Straightener platform
1
Main motor
1
Automatic dryer and hopper
1
Electric apparatus main control cabinet
1

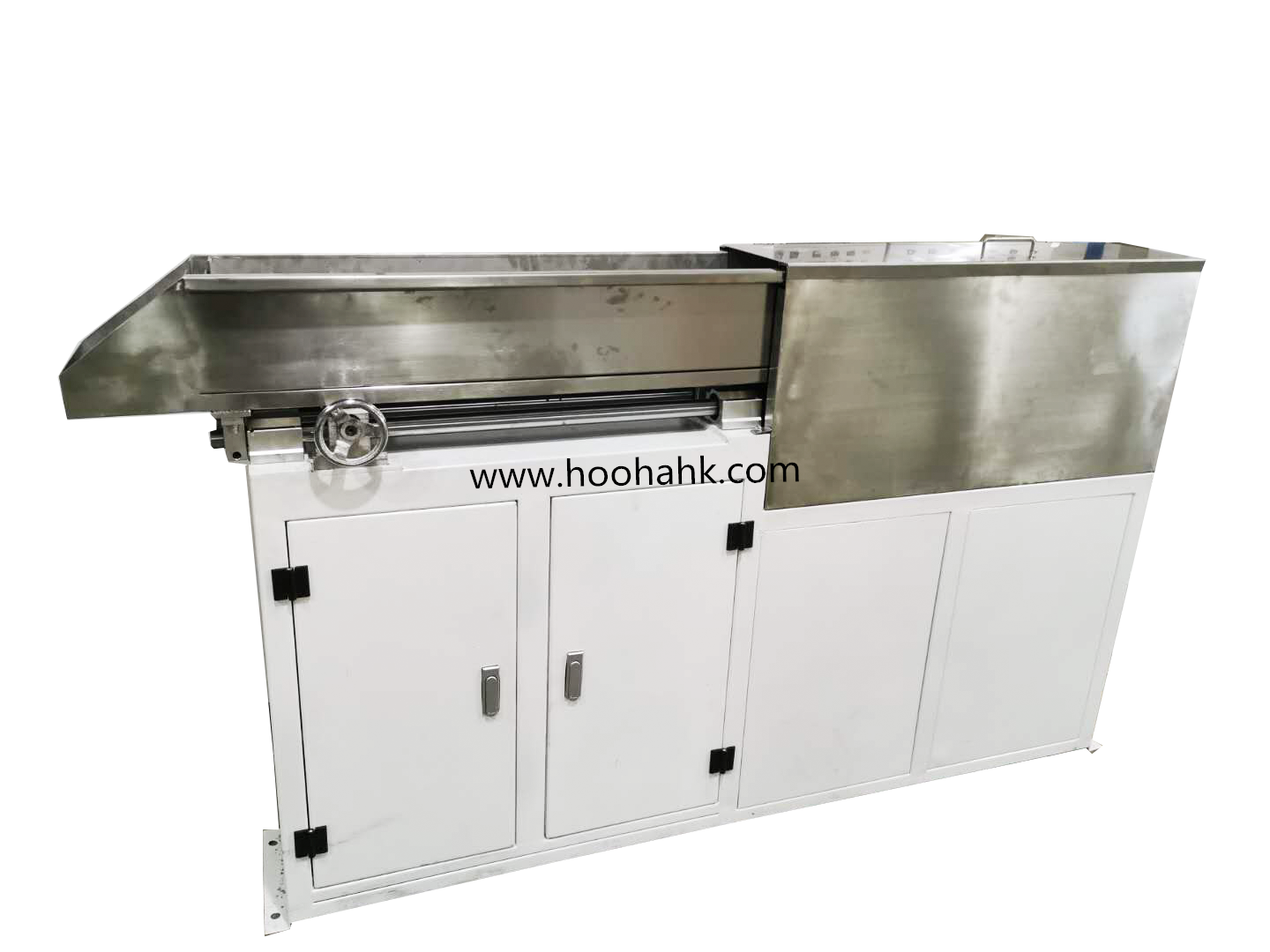

Movable water trough
1

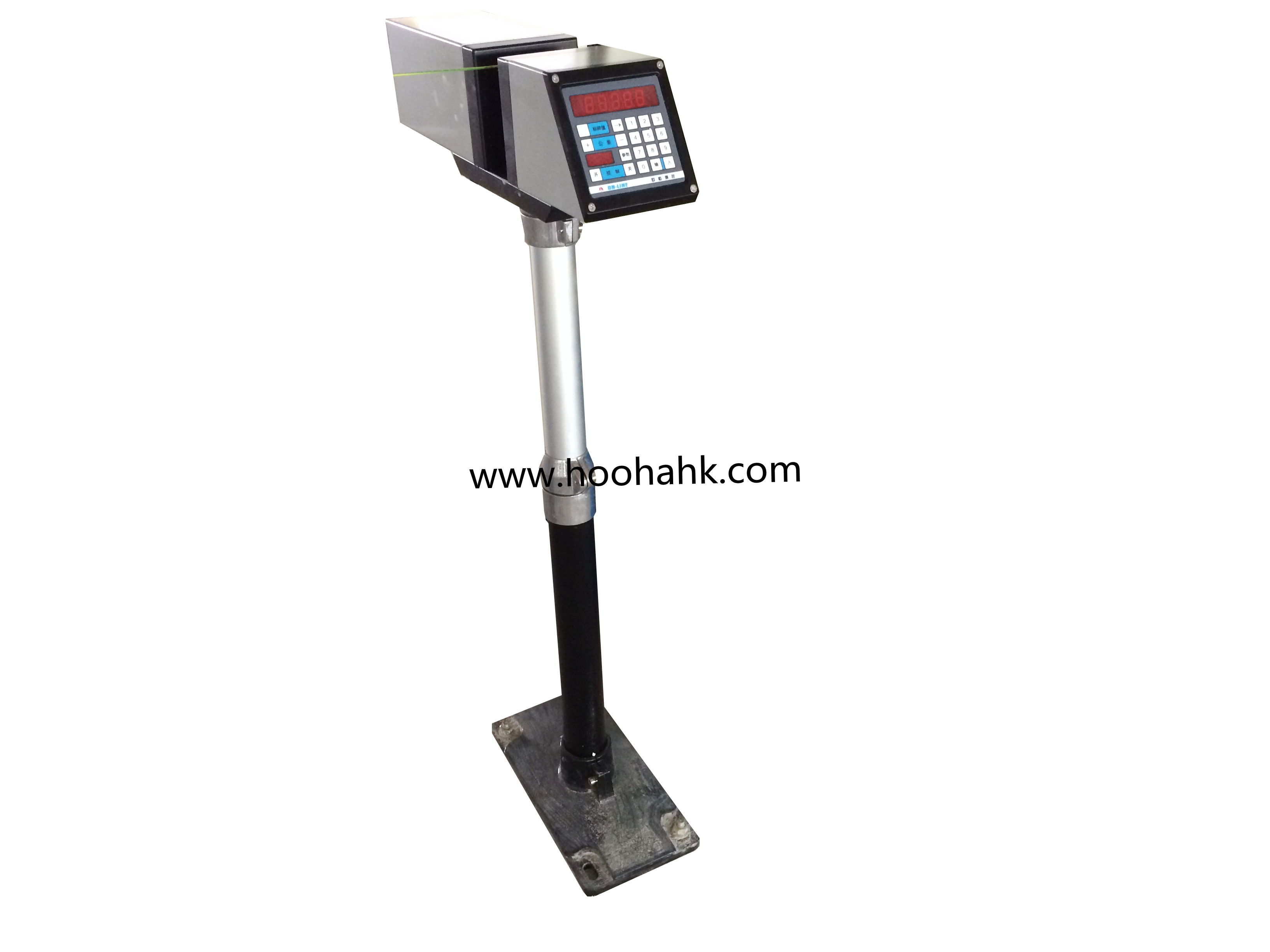

Laser diameter gauge
1
High speed printing machine
1
Fixed water-trough
1
Double-wheels capstan
1
Horizontal type wire-accumulator
1
Power frequency sparker
1
Take-up machine
1
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Application
Be suitable for the extrusion of PVC, PE, PU and other plastic material, mainly applied in the insulation or sheath extrusion of car
cable, net wire, power cable, data wire, high frequency wire, building wire, electric wire. Etc.The changed screw is suitable for
extrusion of low smoke halogen free, nylon and other plastic material.
Feature
A.High configuration, main electric parts are importing from all over the world,
B.Screw adopt the modern latest technology, Gear tooth surface abrasion resistance.
C.Low energy consumption of the equipment, a large quantity of extrusion,
D.High production efficiency, high gloss surface, small temperature difference, low noise, good stability, Strong continuity of working, convenient operation, long service life.
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
No.
Items
Features
1
Inlet Wire Diameter
0.5～3 mm
2
Finished Wire Diameter
1～5 mm
3
Cross Sectional Area
0.5～2.5 square mm
4
Extrusion Speed
Max 500 m/min
5
Extrusion Capacity
80 kg/h
6
Installed Capacity
45 kva
7
Voltage
380V, can be customized
8
Weight
3500 kg
9
Measurement (L*W*H)
20*3*3 m
10
Workers recommendation
3 workers
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
No.
Items
Feature
1
Bobbin size
400-630 mm
2
Loading
500 kg
3
Pay-off speed
500 m/min
4
Tension
5kg magnetic powder clutch
5
Main motor+Lift motor
3.7 kw + 0.75 kw
6
Material
PVC, PE, PU.,etc
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
No.
Items
Feature
1
Insulation material
PVC, PE 100% plasticization
2
Extrusion capacity
Max 15 kg/h
3
Motor
2.2 kw
4
Heating section
3
5
Cooling section
2
6
Temperature control
PID automatic control, 0-399 ℃
7
Material
38CrMoA1A alloy steel with nitriding treatment
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
No.
Items
Feature
1
Type
Dual-wheel (φ410*100MM)
2
Traction power
2.2 kw
3
Traction speed
Max 600 m/min
4
Wheels treatment
Anodizing for long-term usage
5
Measurement
1600*1200*1250 mm
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine

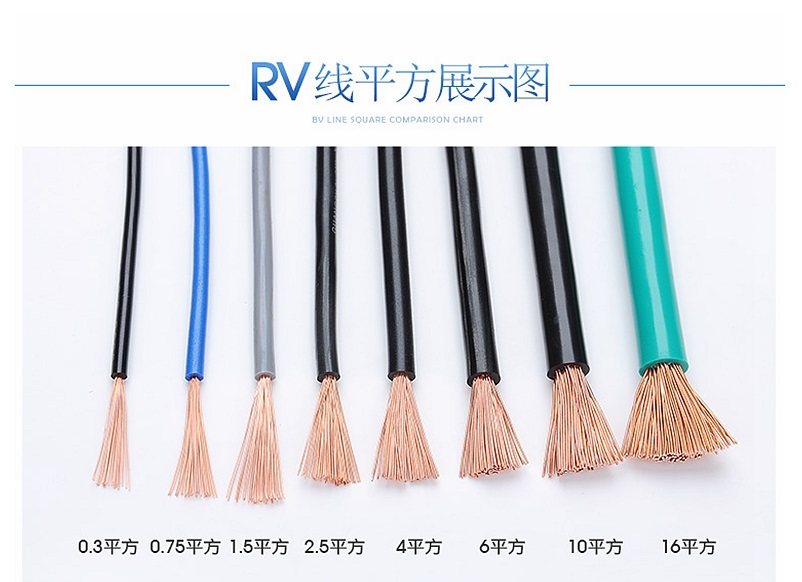

The Wire Samples
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Single core power cable sample
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Flexible power cable sample
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Muti-core power cable sample
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Power cable sample
Company Profile
00:00
02:00
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
Company name
HOOHA Co.,Ltd
Established
2003
Main products
upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service
Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
Factory location
Humen Town,Dongguan City,Guangdong province.
Manufacturing Center
4000 sqm
Showroom
More than 2000 sqm.
Customer Cases
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Egypt
Vietnam
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Tanzania
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Nigeria
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Algeria
Certificates and Exhibitions
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Russian Exhibition
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
GuangZhou Exhibition
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
India Exhibition
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Thailand Exhibition
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
ShangHai Exhibition
The technical team
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Hooha Technical Team
Pre-sale
1.Professional engineer team provide customized design and machine arrangement drawing service
2.Professional engineer team can visit customers's company in person and provide face-to-face service
3.Professional trading system provide high-efficient communication
Mid-sale
1.Professional follow-up system ensures high-quality service including live production video shooting,etc.
2.Quality control system with professional engineers ensures project goes smoothly.
3.Quality checking will be provided with professional quality inspection report before machine delivery.
After-sale
1.Free online consultance service.
2.Long-time maintenance, reconstruction and upgrade services of the overall equipment.
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Engineer Team
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Marketing department
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Oversea Technical team
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
Technical support
Packing & Delivery
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
High Speed PVC PE Cable Extruder Machine PVC Insulation for Copper Wire Making Machine Extrusion Machine
1. Film packing
2. Wooden package
3. Enclosed wooden package
