65mm Cable And Wire Extrusion Machine For Network Cable cat5 cat6 cat7

Name: 65mm Cable And Wire Extrusion Machine For Network Cable cat5 cat6 cat7
Brand: HOOHA
Price: 1199999 USD

Buy cheap 65mm Cable And Wire Extrusion Machine For Network Cable cat5 cat6 cat7 product

Brand Name : HOOHA

Model Number : HH-65

Certification : CE/ISO/SGS

Place of Origin : China

MOQ : 1

Price : 1199999

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000

Delivery Time : 60

Packaging Details : Film packing

Name : Network Cable manufacture insulation machine

Model : HH-65

Usage : Extruding

Heating power : 10kW

Screw diameter : 40mm

Main motor power : 5.5kW

Application : cable insulation

Length diameter : L/D=25:1

Main motor : DC 30kW

Capacity of drier : 50kg: Heating 4Kw

Contact Now

Recommend Products

65mm Cable And Wire Extrusion Machine For Network Cable cat5 cat6 cat7

Product Description

Application:
It’s used for the insulation of wire &cable with PVC,LDPE,NYLON,TPU. Also it can be equipment with triple co-extrusion cross-head
 and double layer.

Suitable raw material :
A.Low oxygen or oxygen–free round copper wire (cu). The maximum inlet diameter is 3.0mm.
B.Insulation material : PE/PVC/PP/HFFRTotal weight:
about 13000KG

Dimension:
 (L×W×H)36000×3000×340mm

Diameter of screw rod	65mm
Ratio of length and diameter	L/D＝24/1
Rotation speed of screw rod	50～140rpm
Max. working pressure	400bar
Heating power	10kW
Main motor	DC 30kW
Capacity of hopper drier	50kg: Heating 4Kw
Capacity of color base mixe	5L

Max Inlet Dia.	Ф2.60mm
Outlet Dia.	Ф0.40～0.mm
Max.machanical Speed	1800 m/min
Max qty of Dies	17
Out Dia of Dies	25mm
Mechanical Elongation	Last die18.6%；Others 25%；
Max Drawing wheel Dia.	Ф250mm
Capstan Wheel Dia.	Ф250mm
Main motor Power	DC 55 kw
Size	2400×1070×140mm
Weight	3200kg

Max mechanical speed	1800m/min
Suitable dimension of spool	F500×F250×F56×250㎜
Max capacity of spool	70kg
Dynamic balance level of winding spool	International standard G6.3
Winding motor power	DC 11kW
Traverse motor power	AC 0.2kW Speed reduction motor
Spool-conveying motor power	AC1.5kW
Motor of power of traverse device	AC 0.4kW Speed reduction motor
Protection cover motor power	AC 0.4kW Speed reduction motor
Wire catching rate	≥95％

Configuration of hard ware
 1)DC speed regulator is digital type product of PK brand.
 2)Programmable controller is product of Japanese Mitsubishi company.
 3)Temperature controller is product of Japanese RKC company.
 4)Low-voltage electric appliances (air switch, contactor) are products of Japanese Fujitsu company.
 5)Industrial control machine is Taiwan product.

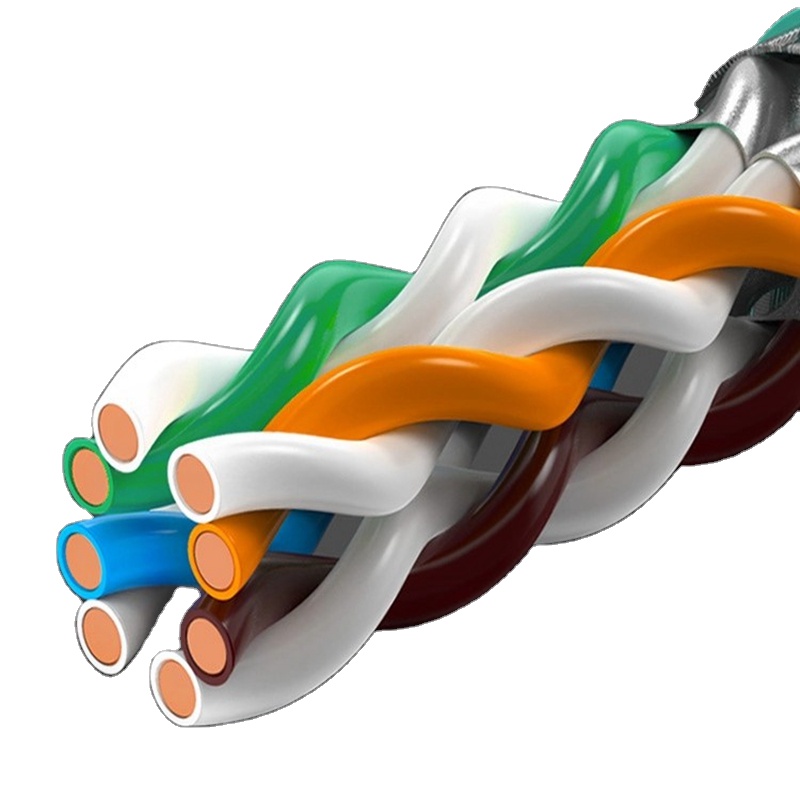

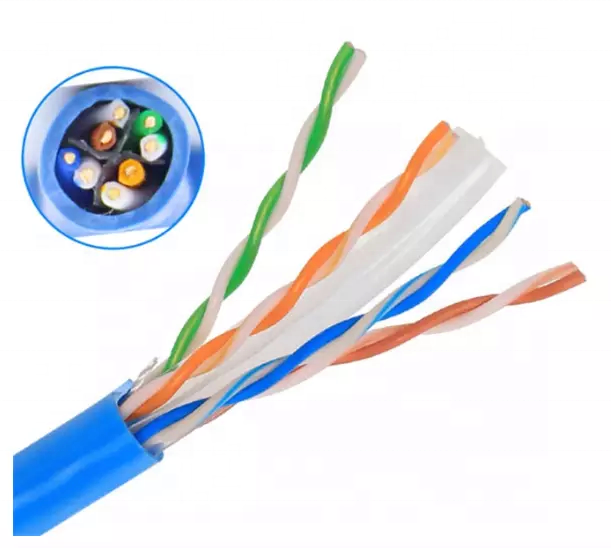

The Wire Samples

Company Profile

00:00

02:00

Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized.
Our target: More professional customer service, struggle for employees' dreams.
We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

The Technical Team

Marketing and finance department

Technical department

Purchasing department

Exhibitions ＆ Certifications

ShangHai Exhibition

Moscow Exhibition

Thailand Exhibition

India Exhibition

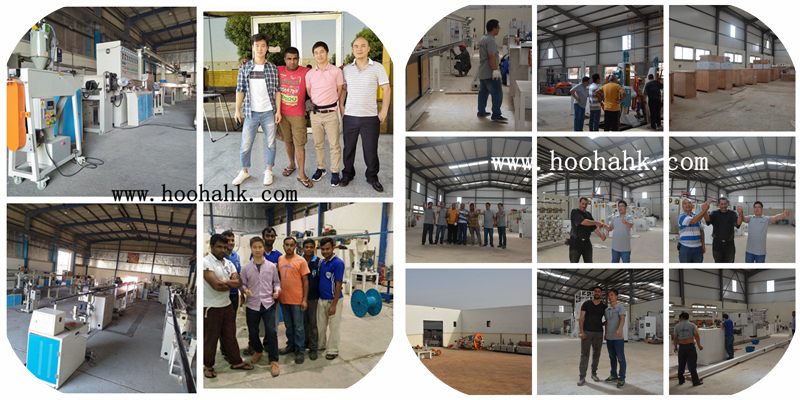

Customer Cases

Algeria

Tanzania

Egypt

Nigeria and Russian

Dubai and Algeria

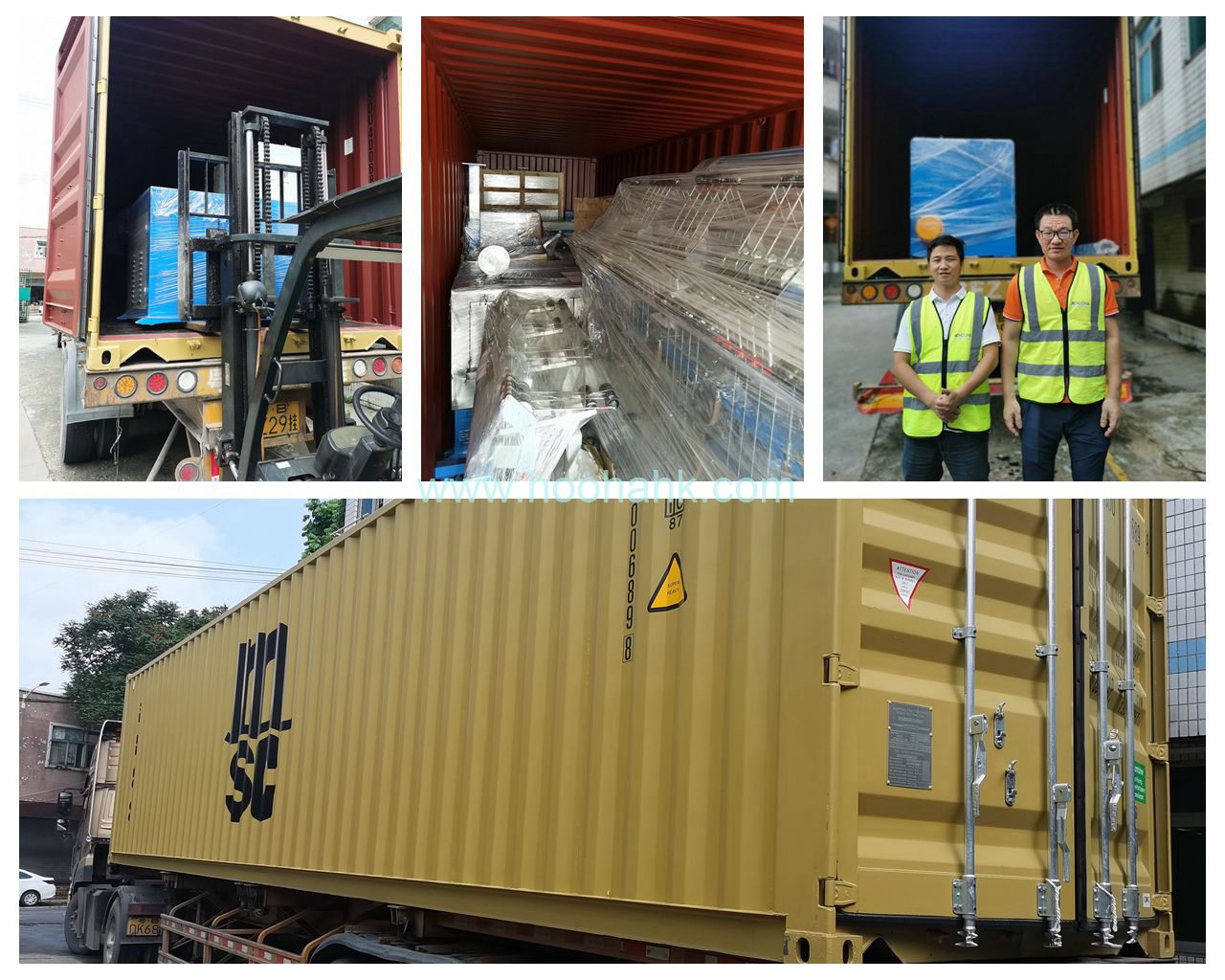

Packing & Delivery

1. Film packing

2. Wooden package

3. Enclosed wooden package
