HH-25mm ETFR / FEP / PFA Wire And Cable Extrusion Machine 0.25-1.5mm

Name: HH25mm ETFR FEP PFA Wire And Cable Extrusion Machine 02515mm
Brand: HOOHA
Price: 190600 USD

Buy cheap HH-25mm ETFR / FEP / PFA Wire And Cable Extrusion Machine 0.25-1.5mm product

Brand Name : HOOHA

Model Number : HH-25

Certification : CE/SGS/ISO

Place of Origin : China

MOQ : 1

Price : USD 190600 sets

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 units/ month

Delivery Time : 60 Working Days

Packaging Details : Film PE Packing

Name : 25mm ETFR/FEP/PFA wire and cable extruder machinery

Wire diameter : 0.25-1.5mm

Maximum line speed : 180M/min

Power : 1KW

Model : HH-25mm

Application : wire insulation

Active sink : 1.5m

Maximum capacity : 8KG/h

Material : ETFR/FEP/PFA

Usage : Extruding

Contact Now

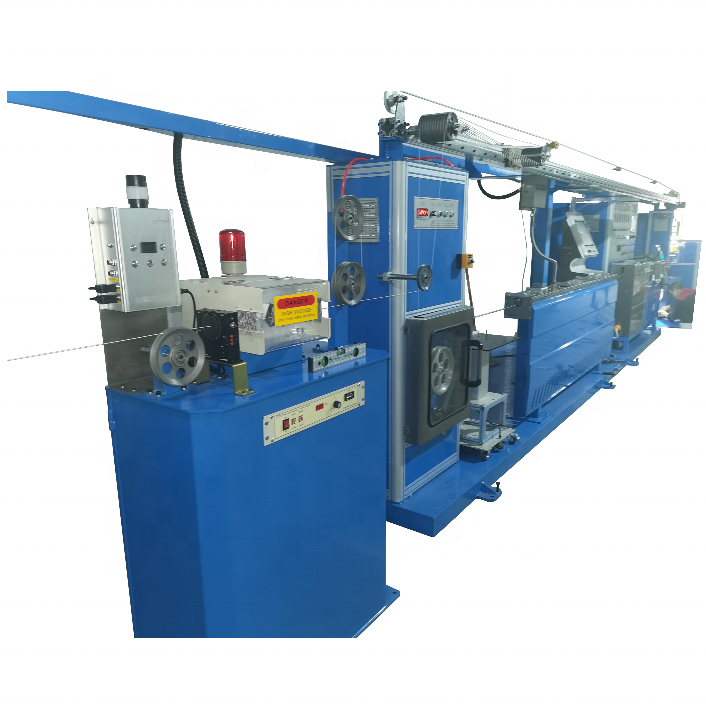

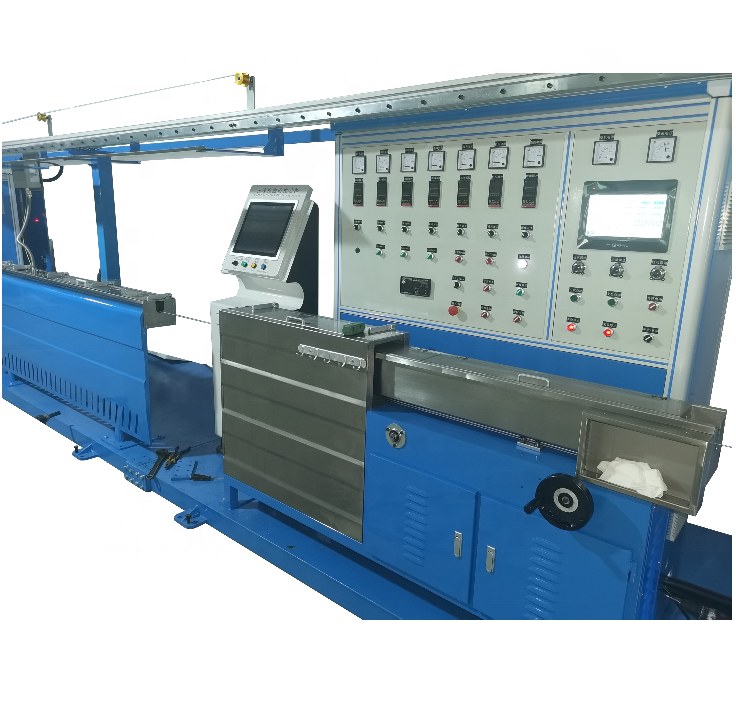

25mm ETFR/FEP/PFA Wire and cable extrusion machine

Product Description

Application:

Suitable for Teflon insulation extrusion of ultra-fine coaxial wire or high frequency wire number transmission wire Teflon
 insulation extrusion and other wire extrusionMaterial:
ETFR/FEP/PFA
Usage:
Suitable for Teflon insulated extrusion of
 very fine coaxial wire or Teflon insulated extrusion of high-frequency wire and other wire extrusion.

Feature
◆High precision: The Teflon cores are produced with an overall precision design from the discharge to the take-up, with absolute stability of the online tension, ensuring a continuous and smooth extrusion of the cores.
 High quality: Concentricity of extruded products: 93% or more: Tolerance of outer diameter: ±0.002
 ◆Stable temperature control: exclusive use of Newtopp Teflon special industrial control machine, Chinese/English interface optional, fully automatic control, simple operation.
 Less space required: the design of the machine is integrated, the appearance is beautiful, and the traditional 4-in-1 system of wire release, wire tensioning, preheating, straightening, lead-in and take-out is 2-in-1, with a box structure, the total length is reduced by more than 5 metres.

Brand Name	Hooha
Model Number	HH-25
Usage	Extruding
Name	25mm FEP/ETFE/PFA Wire and cable extrusion machine
Material	FEP/ETFE/PFA
Wire diameter	0.25-1.5mm
Maximum capacity	8KG/h
Maximum line speed	180M/min
bobbin sizes	200-300mm
Active sink	1.5m
Power	1KW
Application	wire insulation
Model	HH-25mm

The Production Line

Payoff parameters
type	Single head with shaft (with tension indicator)
Discharge	Intelligent power tracking discharge
Tension adjustment	PID function with graduated swing arm slider for tension adjustment
Spool locking	With rotating locker
Spool rotation	With Siemens Beder motor tracking drive
Bobbin size	200-300 Shaft size

30mm host parameters
Screw:	25mm using VD alloy steel C-276,L/D ratio 26:1
Screw barrel:	Φ25mm using VDM alloy steel C-276
Transmission:	Adopt high-strength, polished hard tooth surface ZDY-133 type
Host speed:	50RPM/MAX
Host power:	Using 7.5KW Huichuan servo motor + complete set of servo controller
Heating device structure:	Heating device for the full cast copper structure or ceramic electric heating ring
Head unit:	One set of head drainage system unit

Φ318mm single pulley type belt drawer parameters

◆Φ318 single aluminum wheel covered with belt lead type, surface anodic hardening treatment

◆The main power is 2KW Huichuan servo motor+sets of servo controller

◆The single wheel adopts the belt over the pick-up wheel structure

◆Closed stainless steel structure

diameter guage

Sparks

Preheater

Company Profile

00:00

02:00

What can HOOHA provide
Professional and customized wire and cable solutions
Suggestions and guidance of the overall cable factory operation
Overseas on-site installation and operation instruction
Cost accounting service of raw materials and accessories
Cost accounting service of overall production operation
Talent delivery and training service
Lifetime after-sales online consultation service
Maintenance, reconstruction and upgrade services of the overall equipment
Additional support, such as raw material or accessories supply and suggestions, etc.

We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

Customer Cases

Tanzania

Algeria

Exhibitions ＆ Certifications

The Technical Team

Technical department

Marketing department Finance department Purchasing department

Packing & Delivery

1. Film packing

2. Wooden package

3.Enclosed Carton package
