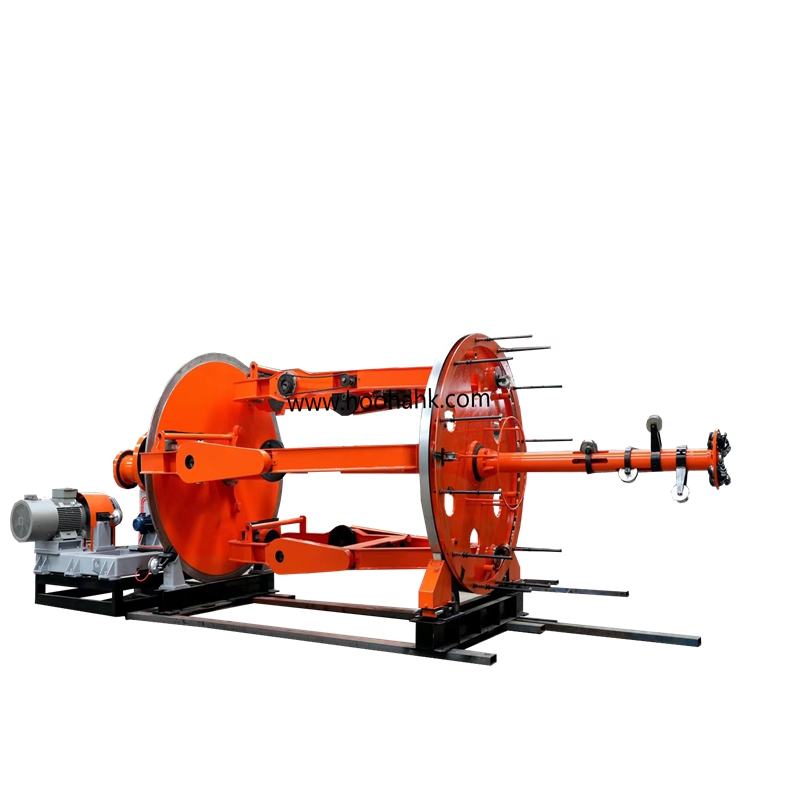

1+6 bow type stranding machine 630 type wire and cable machine

Brand Name : HOOHA

Model Number : HH-630

Certification : CE,ISO,SGS

Place of Origin : Guangdong, China

MOQ : 1 Set

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 Sets/year

Delivery Time : 60 working days

Packaging Details : 1. film packing 2. wooden package 3.enclosed wooden package

Certificate : ISO/Ce

Equipment direction : left release and right collection.

Main body speed : Max 400RPM.

Origin : Dongguan

Usage : Multifunctional, stranding

color : sky blue (national standard 5015)

Stranding distance : 0mm-500mm

Stranding speed : Max 80m/min if the stranding distance is 200mm

Contact Now

Product Description
1+6 bow type stranding machine 630 type wire and cable machine
NO.
specifications
1
φ630 shaftless magnetic powder tension release frame
2
φ630 bow strand mainframe
3
Φ450 three tray paper wrapping machine
4
PLC electrical control box
5
800 Twin-wheeled crane
6
Φ1000-2000 gantry address rail walking type
Receiving/rowing frame
Usage:
Suitable for twisted wire, power line, control line, special line wire core and copper wire stranding.
The Wire Samples
1+6 bow type stranding machine 630 type wire and cable machine
Specification
Machine Type
HH - 630
Single wire dia.
1.5-5.0(copper)
1.8-5.0(AL)
Max O.D
45
Stranded pitch
6
64-946
12
64-946
18
46-780
24
83-1226
Speed
6
69-162
12
69-162
18
61-143
24
53-125
Speed
59
Bobbin
PND630
Pay off bobbin
PN1600-PN2500
Take up bobbin
PN2500-PN3150
Main motor
132KW
